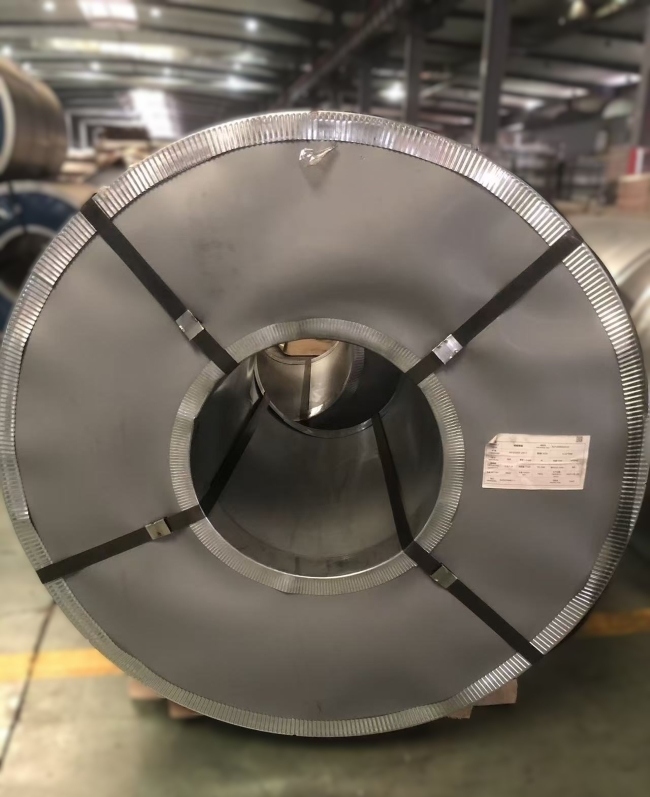

Name: High-Strength TFS DR9 Tinplate Coils - TH415 to TH620 Hardness Grades for Food Cans
Brand: SHANGHAI QUANYE METAL PACKAGING MATERIALS CO.,LTD
SKU: TFS DR8
Price: 499.01 USD
Availability: InStock

Casa > produtos > Bobina do folha de Flandres >

High-Strength TFS DR9 Tinplate Coils - TH415 to TH620 Hardness Grades for Food Cans

Lugar de origem:

China

Marca:

QuanJiang

Certificação:

SGS, Mill certificate

Número do modelo:

TFS DR8

Contacte-nos

Peça umas citações

Detalhes do produto

Material::

MR, SPCC, Prime Tinplate / TFS

Dureza::

TS230, TS245, TS260, TS275, TS290, TH415, TH435, TH520, TH550, TH580, TH620

Tipo::

Bobina e folha

Temperamento::

T1, T2, T3, T4, T5, DR8, DR7, DR9

Grossura::

0.15-0.5mm

Revestimento de lata::

1.1/1.1,2.0/2.0, 2.8/2.8,5.6/5.6, etc. ou customizado

Impressão::

Impressão offset em cymk / pms conforme sua arte

Largura:

600-1000mm ou personalizado

Comprimento:

600mm-1200mm ou como bobinas

Aplicativo::

lata de leite, lata de aerossol, lata de sardinha, lata de atum, lata vergetabl, lata de frutas, lat

Termos do pagamento & do transporte

Quantidade de ordem mínima

25tons

Preço

Negotiated

Detalhes da embalagem

Padrão Seaworthy com palete de madeira, canto protegido. por folha ou bobinas de acordo com os clien

Tempo de entrega

Negociado

Termos de pagamento

T/T

Habilidade da fonte

50000mt/mês

PRODUTOS RELACIONADOS

Vídeo

High-Strength Electrolytic Tin Plate for Packaging Box - TH415 to TH620 Hardness 0.2mm

Obtenha o melhor preço

Vídeo

High-Strength Electrolytic Tin Plate Coils with Bulk Inventory - TH435/TH520/TS260/TS290 Grades

Obtenha o melhor preço

Vídeo

Industrial Grade Electrolytic Tin Plate for Oil, Grease, Paint & Polish Packaging Containers

Obtenha o melhor preço

Premium Electrolytic Tin Plate Sheets & Coils for Food Cans, Aerosol Containers, and Paint Packaging

Obtenha o melhor preço

Contacte-nos

+8618321408860-021-56922400

quanye@spte.cn

+86-021-56922411

Contato agora

Descrição do produto

High-Strength TFS DR9 Tinplate Coils - TH415 to TH620 Hardness Grades for Food Cans

Product Description:
Electrolytic Tin Plate (ETP) and Tin Free Steel (TFS) represent advanced packaging materials engineered for superior performance in food and industrial applications. Our TFS DR9 tinplate coils feature exceptional high-strength characteristics with hardness grades ranging from TH415 to TH620, providing manufacturers with versatile solutions for demanding packaging requirements. These materials utilize an electrolytic chromium coating that offers superior paint adhesion and excellent sulfide stain resistance, making them particularly suitable for protein-rich food products like fish and meat. The DR9 temper designation ensures optimal strength and formability, while the chromium coating provides exceptional corrosion resistance without using tin, creating a cost-effective and environmentally friendly packaging solution.

Features & Advantages:

Superior paint adhesion properties for enhanced decoration and branding
Excellent sulfide stain resistance for protein-rich food packaging
High-temperature resistance maintains integrity during sterilization processes
Exceptional alkali resistance for diverse product compatibility
Environmentally friendly chromium coating solution
Excellent formability and weldability for efficient manufacturing
Multiple hardness grades accommodate various strength requirements
Cost-effective alternative to traditional tinplate materials

Applications:

Food cans for fish, meat, and protein-rich products
Aerosol containers and chemical packaging
Paint and industrial compound containers
Beverage can ends and closures
Pharmaceutical and specialty packaging

Technical Parameters:

Property	Specifications
Material Type	TFS (Tin Free Steel), Electrolytic Tin Plate
Thickness Range	0.15-0.5mm
Available Widths	660-1090mm
Hardness Grades	TH415, TH435, TH520, TH550, TH580, TH620
Surface Finish	Bright, Stone, Silver, Matte
Coating Options	1.1/1.1 to 5.6/5.6 g/m² (customizable)
Temper Grades	DR9, T1-T5, DR7-DR9
Standards	JIS G3303 Certified

High-Strength TFS DR9 Tinplate Coils - TH415 to TH620 Hardness Grades for Food Cans 0

High-Strength TFS DR9 Tinplate Coils - TH415 to TH620 Hardness Grades for Food Cans 1

Workshop Show

High-Strength TFS DR9 Tinplate Coils - TH415 to TH620 Hardness Grades for Food Cans 3

High-Strength TFS DR9 Tinplate Coils - TH415 to TH620 Hardness Grades for Food Cans 4

Production Process

High-Strength TFS DR9 Tinplate Coils - TH415 to TH620 Hardness Grades for Food Cans 5

PARTNER

High-Strength TFS DR9 Tinplate Coils - TH415 to TH620 Hardness Grades for Food Cans 6

High-Strength TFS DR9 Tinplate Coils - TH415 to TH620 Hardness Grades for Food Cans 7

FAQ:

What are the main advantages of TFS over traditional tinplate?
TFS offers superior paint adhesion, excellent sulfide resistance, and cost-effectiveness while maintaining similar corrosion protection properties.
How quickly can I get price information?
We typically provide quotations within 24 hours of receiving your inquiry, excluding weekends and holidays.
Can I order samples before placing a bulk order?
Yes, we welcome sample orders and can provide material samples for your testing and evaluation.
What is your standard lead time for production?
Lead times vary by order quantity, typically 7-15 days for smaller quantities and up to 30 days for larger production runs.
What payment terms do you accept?
We primarily accept T/T payments, though terms are negotiable based on order size and customer relationship.
